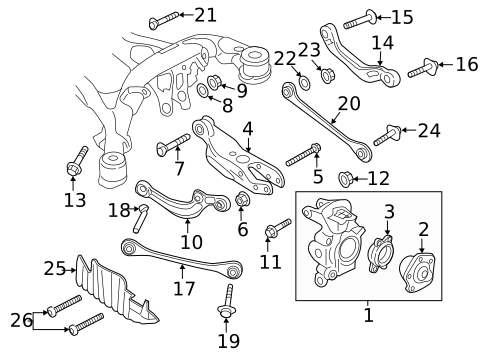

Hardware, Fasteners & Fittings for 2024 Audi Q8 e-tron
No.
Part # / Description / Price
Price
1
Genuine Audi Knuckle 4KE505431E OEM A6 A7 C8 Authorized Dealer
Audi
Audi Positions: Left
Notes: PARTS: Order by application.
Description: E-tron Quattro. Left. E-tron Sportback.
MSRP $993.86
$692.84
MSRP $993.86
$692.84
1
Genuine Audi Knuckle 4KE505432E OEM A6 A7 C8 Authorized Dealer Audi
Audi Positions: Right
Notes: PARTS: Order by application.
Description: E-tron Quattro. Right. E-tron Sportback.
MSRP $993.86
$692.84
MSRP $993.86
$692.84
2
Genuine Audi Hub 4M0501652A OEM Q7 SQ7 Authorized Dealer Audi
Audi Positions: Rear
Description: E-tron Quattro. Rsq8. To 08/05/2024. To 07/15/2024. Q8 e-tron. RS Q8. SQ8 e-tron.
MSRP $655.00
$421.69
MSRP $655.00
$421.69
4
Genuine Audi Lower Control Arm 4M0505311J OEM Q7 SQ7 Authorized Dealer Audi
Audi Positions: Left
Notes: PARTS: Part has related components that cannot be reused/reinstalled; front bolt, bolt, adjustment bolt, lock nut.
Description: Incl.Bushings. Knuckles & arms. E-tron Quattro. RS Q8. Q8 e-tron. SQ8 e-tron.
MSRP $700.01
$450.66
MSRP $700.01
$450.66
5
Genuine Audi Lower Control Arm Mount Bolt N91236301 OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Knuckles & arms. Lower cntrl arm,front bolt. Fork,bolt. Awd. Rwd.
MSRP $15.38
$8.51
MSRP $15.38
$8.51
6
Lower Control Arm Lock Nut Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Knuckles & arms. Lower cntrl arm,lock nut. Without awd.
MSRP $1.26
$0.70
MSRP $1.26
$0.70
7
Genuine Audi Lower Control Arm Adjust Bolt WHT007092A OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Cam Bolt. Convertible, to 03/20/2017. Knuckles & arms. Lower cntrl arm,adjust bolt. 2017-25.
MSRP $19.48
$10.77
MSRP $19.48
$10.77
8
Genuine Audi Lower Control Arm Adjust Cam WHT007043A OEM Audi
Audi Positions: Left
Description: Camshaft. Knuckles & arms. 2017-25. Without awd. Convertible,. Coupe,.
MSRP $7.89
$4.37
MSRP $7.89
$4.37
10
Genuine Audi Ft Upper Control Arm 4M0505323G OEM Q7 SQ7 Audi
Audi Positions: Left
Notes: PARTS: Part has related components that cannot be reused/reinstalled; front bolt, nut, rear bolt.
MSRP $454.16
$294.15
MSRP $454.16
$294.15
11
Genuine Audi Ft Upper Control Arm Mount Bolt N91237101 OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: M10x85. Knuckles & arms. Track bar,screw. Ft upr cntl arm,screw. Knuckle,retainer.
MSRP $13.84
$7.65
MSRP $13.84
$7.65
12
Genuine Audi Ft Lower Control Arm Lock Nut N10106403 OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
MSRP $5.98
$3.31
MSRP $5.98
$3.31
13
Genuine Audi Ft Upper Control Arm Mount Bolt N91228901 OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
MSRP $3.19
$1.76
MSRP $3.19
$1.76
14
Genuine Audi Rear Upper Control Arm 4KE505397 OEM A6 A7 C8 Audi
Audi Positions: Left
Notes: PARTS: Part has related components that cannot be reused/reinstalled; bolt, adjust bolt.
Description: Incl.Bushings. E-tron Quattro. Left. Q8 e-tron. SQ8 e-tron.
MSRP $478.34
$309.82
MSRP $478.34
$309.82
14
Genuine Audi Rear Upper Control Arm 4KE505398 OEM A6 A7 C8 Audi
Audi Positions: Right
Notes: PARTS: Part has related components that cannot be reused/reinstalled; bolt, adjust bolt.
Description: Incl.Bushings. E-tron Quattro. Right. Q8 e-tron. SQ8 e-tron.
MSRP $478.34
$309.82
MSRP $478.34
$309.82
15
Genuine Audi Rear Upper Control Arm Bolt N91229001 OEM Authorized Dealer Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Knuckles & arms. Upper cntrl arm,bolt. Rr lwr cntl arm,bolt. Rear cntl arm,bolt.
MSRP $14.35
$7.94
MSRP $14.35
$7.94
16
Genuine Audi Rear Upper Control Arm Adjust Bolt WHT006496 OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Knuckles & arms. Tie rod,bolt. Upper cntrl arm,screw. Tie bar,mount bolt. Link rod,screw.
MSRP $19.60
$10.84
MSRP $19.60
$10.84
17
Genuine Audi Track Bar 4M0505291F OEM Q7 SQ7 Authorized Dealer Audi
Audi Positions: Left
Notes: PARTS: Part has related components that cannot be reused/reinstalled; bolt, adjust bolt.
MSRP $506.66
$326.19
MSRP $506.66
$326.19
17
Genuine Audi Track Bar 4M0505292F OEM Q7 SQ7 Authorized Dealer Audi
Audi Positions: Right
Notes: PARTS: Part has related components that cannot be reused/reinstalled; bolt, adjust bolt.
MSRP $521.66
$335.85
MSRP $521.66
$335.85
19
Genuine Audi Upper Control Arm Mount Bolt WHT007096 OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
MSRP $14.42
$7.97
MSRP $14.42
$7.97
19
Genuine Audi Ft Lower Control Arm Bolt WHT007028 OEM Authorized Dealer Audi
Audi Positions: Front lower inner
Description: Ft lwr cntl arm,mount bolt. A7. S7. Inner.
MSRP $4.12
$2.28
MSRP $4.12
$2.28
20
Genuine Audi Tie Rod 4M0501529L OEM Q7 SQ7 Authorized Dealer Audi
Audi Positions: Left
Notes: PARTS: Part has related components that cannot be reused/reinstalled; bolt, adjust bolt, nut, bolt.
MSRP $240.00
$155.45
MSRP $240.00
$155.45
21
Genuine Audi Rear Lateral Arm Adjust Bolt WHT007090A OEM Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Trailing arm,bolt. Tie rod,adjust bolt. Knuckles & arms. 2017-25. Without awd. Tie bar,screw. Tie bar,bolt. Convertible,. Link rod,retainer screw. Coupe,.
MSRP $13.84
$7.65
MSRP $13.84
$7.65
22
Genuine Audi Rear Lateral Arm Adjust Cam WHT007041A OEM Audi
Audi Positions: Left
Description: With awd. Knuckles & arms. 2017-25. Coupe,. From 01/27/2025. Convertible,.
MSRP $7.89
$4.37
MSRP $7.89
$4.37
23
Rear Lateral Arm Lock Nut Audi
Audi Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Knuckles & arms. 2017-25. Without awd. Convertible,. Coupe,.
MSRP $0.98
$0.54
MSRP $0.98
$0.54
25
Genuine Audi Stone Guard 4M0505415D OEM Q7 SQ7 Authorized Dealer Audi
Audi Positions: Left
Notes: PARTS: Order by application.
Description: Knuckles & arms. Engine code: t4k.
MSRP $56.67
$36.98
MSRP $56.67
$36.98
25
Genuine Audi Stone Guard 4M0505416C OEM Q7 SQ7 Authorized Dealer Audi
Audi Positions: Right
Notes: PARTS: Order by application.
Description: Knuckles & arms. Engine code: t4k.
MSRP $56.67
$36.98
MSRP $56.67
$36.98
26
Genuine Audi Shield Pin 80A512182 OEM Q5 SQ5 Authorized Dealer Audi
Audi Positions: Left
Description: Knuckles & arms.
MSRP $12.30
$6.80
MSRP $12.30
$6.80
